55×55×35mm Stainless Steel Glass Clamp For Balcony / Staircase Fencing
Specifications.
| Dimension | 55*55*35mm |
| Glass thickness | 6mm,6.76mm,8mm,8.76mm,10mm,10.76mm, 12mm, 12.76mm |
| Material | SS304 / SS316 /SS316L /DUPLEX 2205 |
| Surface | satin(brushed 320) /mirror |
| MOQ | 100pcs |
| Free samples | YES |
| Production time | 35-45days according to quantities |

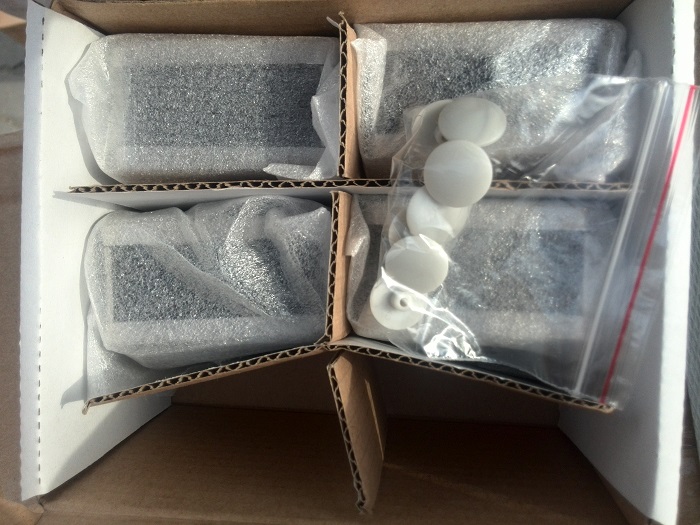

| Packing | Plastic bag/pc, 4pcs in a box, 10boxes in a carton |
| Payment term | T/T30% as deposit, 70% payed according to documents copy. |
| Destination service | Available |
| ODM & OEM | YES |
| Delivery term | FOB, CIF, CFR, DDU, DAP |

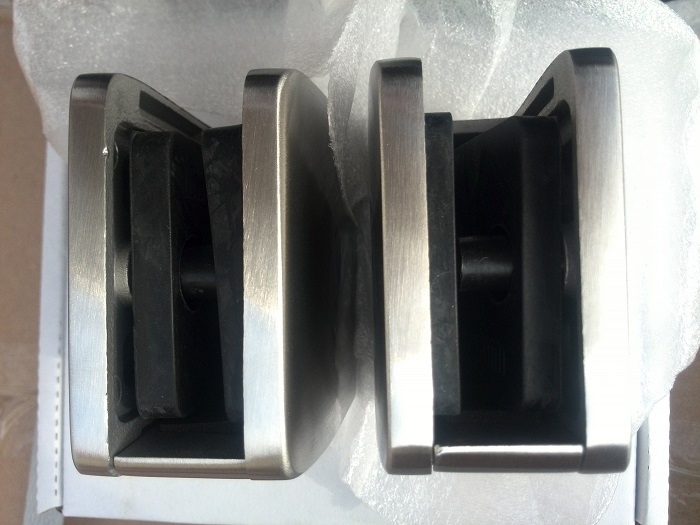

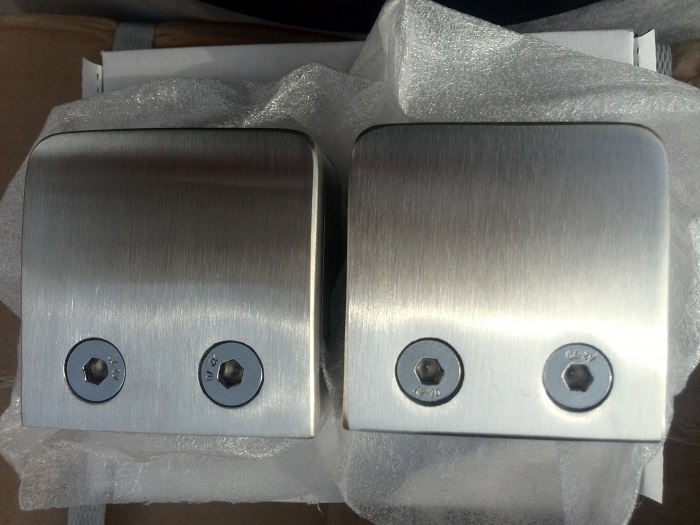

This big square glass holder is designed for 12.76mm glass at most, it can be used for glass balustrade in balcony, staircase, swimming pool fencing and according to needs.
According to different requirements, SS304(V2A) ones could be installed indoor, and SS316(V4A) ones could be used outdoor, which with better rust protection and non-corrosion. SS316L ones can also be suppllied if much better performance is required.
Material
| | C | Si | Mn | P | S | Ni | Cr | Mo |
| AISI304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.-10.0 | 18.0-20.0 | |
| AISI316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| AISI316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
Grade 304 is the most common stainless steel, and can satisfy various demand for adequate performance at an affordable price. It has good corrosion resistance in ad wide variery of enrironments, is a best choice for indoor use.
Grade 316 has a higher level of corrosion resistance. The grade 316 is often referred to as Marine Grade. Typical applications are architectural compontnets where they are exposed to extreme weather and climatic conditions, such as near to the coast, industial sites or around swimming pools.
General terms:
- Lead time: 30-50days according to order quantities.
- Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.
- Departure port: Qingdao or other ports according to needs.
- Shipment term: EXW, FOB, CIF, DDU, DAP or according to needs.
Products available.
With kinds of product lines, Compass could be your one-stop supplier.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.
