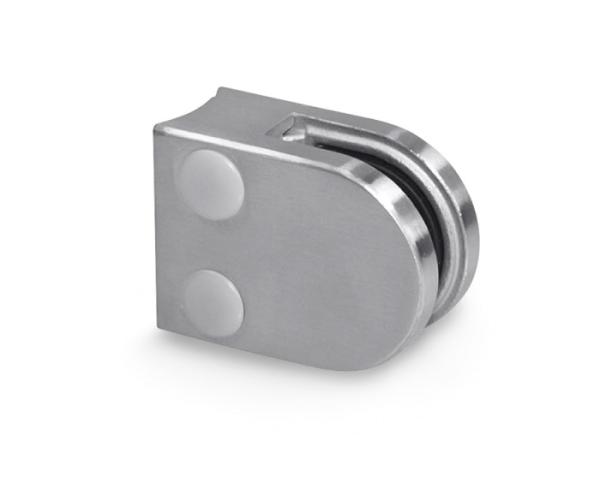

Inox 40*50mm Glass Clamp Working for Stainless Steel and Glass Railings
Dimensions.
| Item NO. | sizes | Base | Glass thickenss |
| 101.4050.000 | 40*50*26mm | flat | 6mm-10.76mm |
| 101.4050.337 | 40*50*26mm | 33.7mm | 6mm-10.76mm |
| 101.4050.381 | 40*50*26mm | 38.1mm | 6mm-10.76mm |
| 101.4050.424 | 40*50*26mm | 42.4mm | 6mm-10.76mm |
| 101.4050.483 | 40*50*26mm | 48.3mm | 6mm-10.76mm |
| 101.4050.508 | 40*50*26mm | 50.8mm | 6mm-10.76mm |
Feature.
1. Weight: 190g
2. The base could be flat for square tube or round for 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm pipes.
3. Glass: 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm
4. Available sizes:
D shape - 40*50**26mm, 45*63*29mm.
Square shape - 45*45*27mm, 52*52*32mm, 55*55*35mm.
5. Lead time : 35-45days according to order quantity.

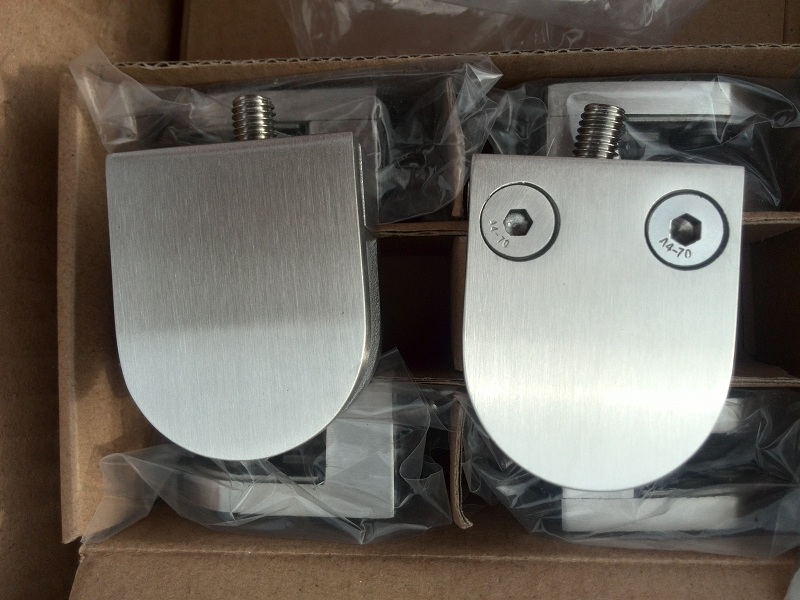

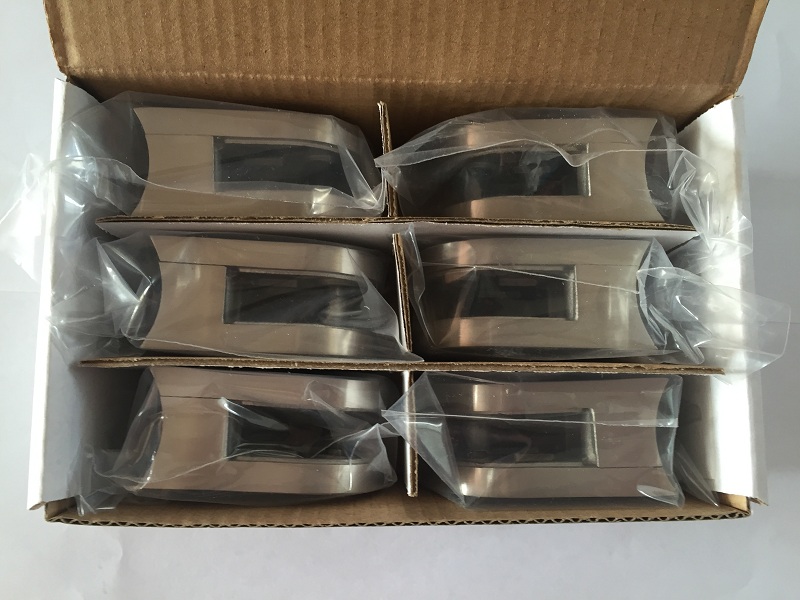

6. Packing : Bubble bag per piece, 6pcs or 4pcs in a inner box, 10boxes in a carton, with pallet outside.
7. Delivery term : FOB, CIF, CFR, DDU, DAP.
8. Departure port: Qingdao or according to needs.
9. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading
Application.

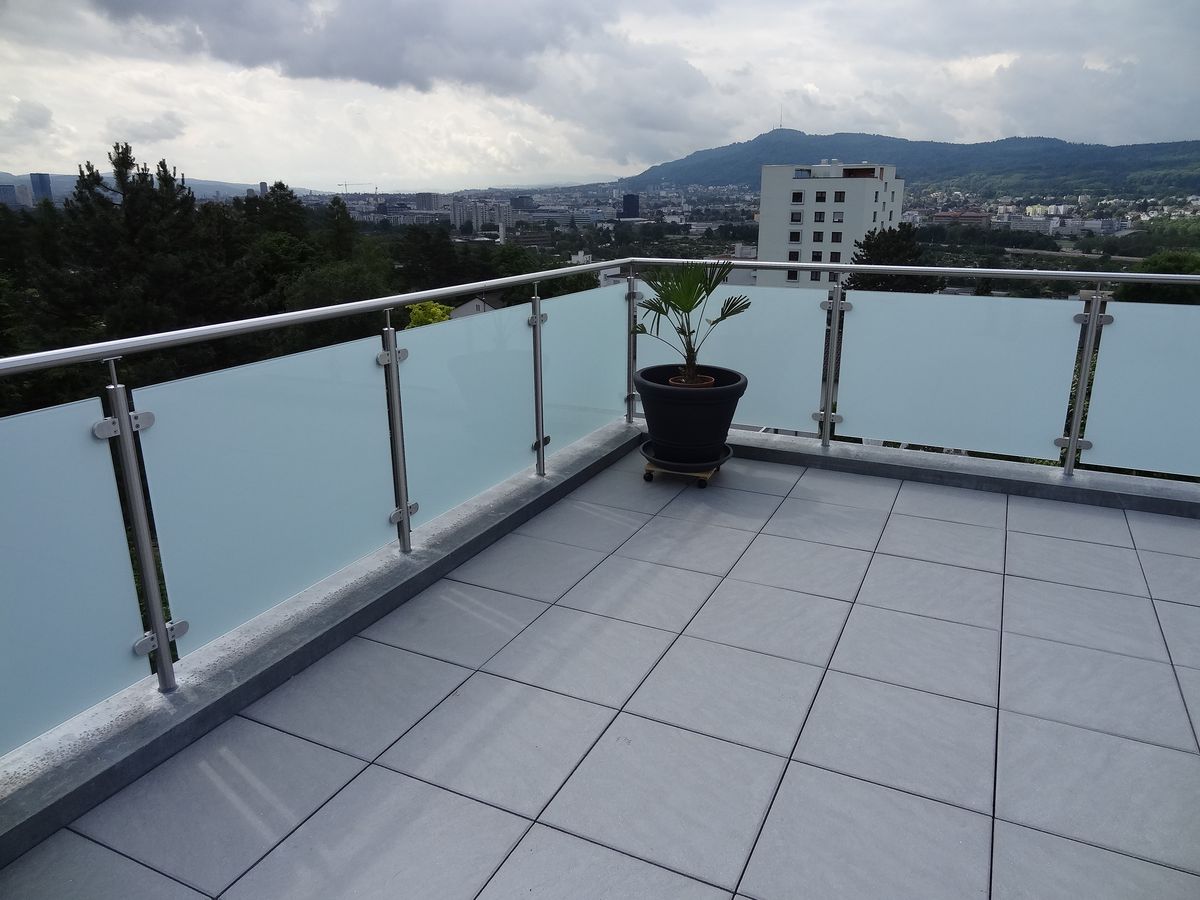

Our glass calmps are very versatile part of the railing systems. Available in both flat and concave back, they can be used with either round or square balusters ot mount glass or other architectural panels.
When it comes to our glass solutions, one thing is perfectly clear: Safety first? All glass clamps are certified and grip the glass panels with immense strength. Our glass clamps have been successfully tested with both tempered and laminated glass.
Compass are specialized in stainless steel balustrade and fittings. Complete series could be supplied here including frameless glass balustrade, slot tube balustrades, cable railings, wooden handrails and other fittings as glass clamps, brackets, elbows, etc.
With European level quality, our customers and partners covers more than 30 countries from Europe, America, Latin America, Australia, Africa, and Southeast Asia.
Welcome to contact us if you have any question, professional team will reply you within 8 hours.
