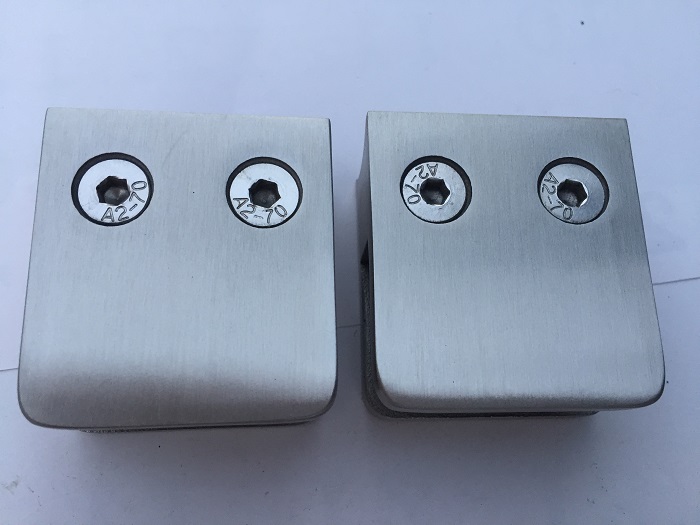

Stainless Steel Glass Railing Systems Square Glass Clamps For 10mm Glass Panel
Dimensions.
| Item NO. | Size | Base | Glass thickenss |
| 103.4545.000 | 45*45*27mm | Flat | 6mm-10.76mm |
| 103.4545.337 | 45*45*27mm | 33.7mm | 6mm-10.76mm |
| 103..4545.381 | 45*45*27mm | 38.1mnm | 6mm-10.76mm |
| 103.4545.424 | 45*45*27mm | 42.4mm | 6mm-12.76mm |
| 103.4545.483 | 45*45*27mm | 48.3mm | 6mm-10.76mm |
| 103.4545.508 | 45*45*27mm | 50.8mm | 6mm-10.76mm |
Application.

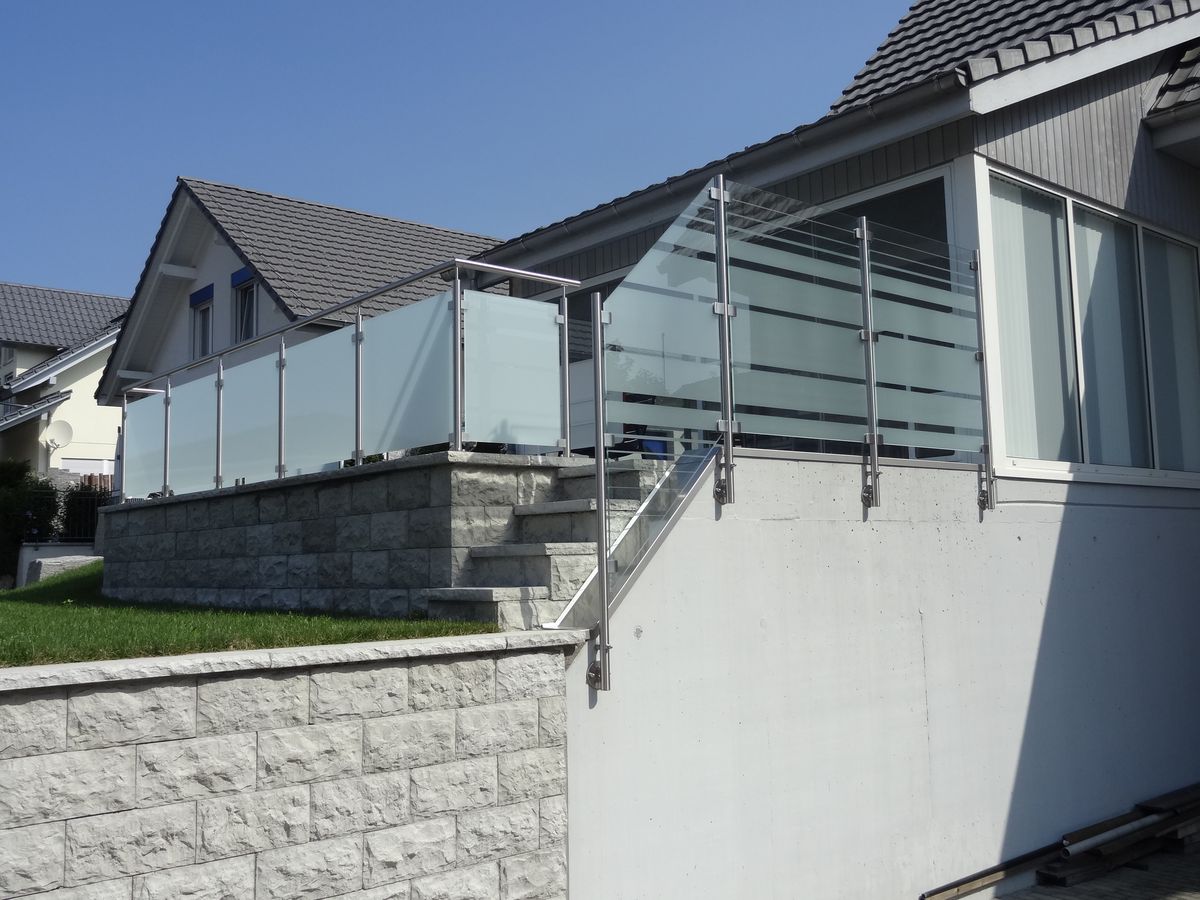

Used in both residential and commercial applidations, the glass railing systems allow you to showcase the view, rather than hide it.
Our system installs on site with no welding required – simply glue, drill and tap the pieces into place. Available in type AISI304 and AISI316 for either interior or exterior installation.
This is designed for both indoor and outdoor uses, easily accommodated glass. From office buildings to apartment complexes, balconies to separations, no welding required.
| Item | Stainless Steel Glass Railing Systems Square Glass Clamps For 10mm Glass Panel |
| Material | AISI3041, AISI316 |
| Finish | Satin(brushed), Mirror(polished) |
| Dimension | 45*45*27mm |
| Glass thickness | 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm |

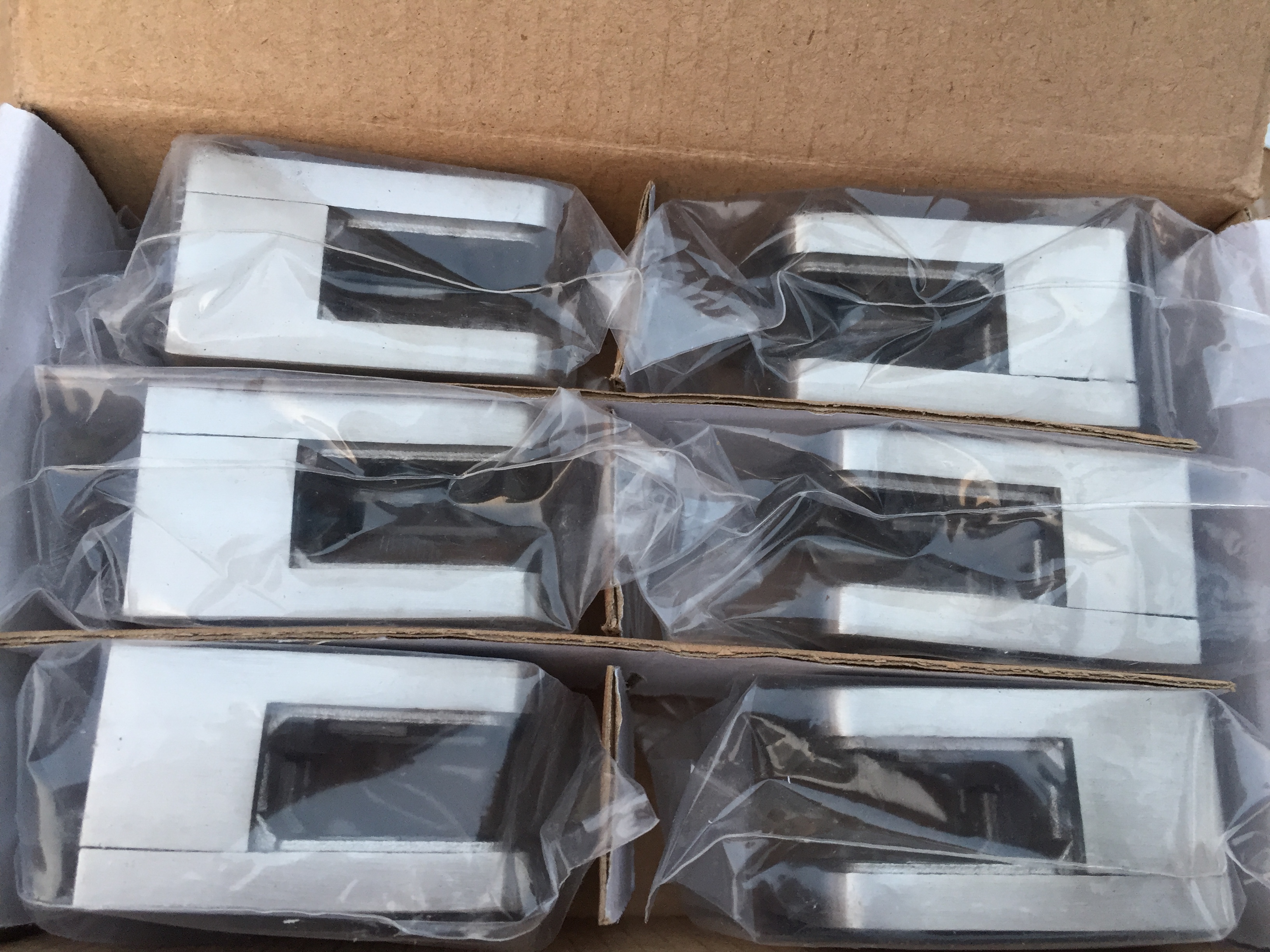

| Packing | 6pcs in a box, 10boxes in a carton, with pallet outside |
| Lead time | 35-45days |
| Transportation | By sea, by air or by express |
| Departure port | Qingdao or according to needs |
| Free samples | Available |
| Delivery term | FOB, CIF, CFR, DDU, DAP |
| Payment term | T/T30% as deposit, 70% payed according to documents copy. |
Advantage.
1. One-stop supplier
With professional casting production lines and machining lines, the whole series of stainless steel railing system can be supplied.
2. Standard materials is as following
AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.0
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
3. Destination service.
DDU/DAP service could also be supplied according to needs, then the goods can be delivered to your address directly.
4. Steady and fast delivery time
With strickt controlling system according ISO9001, steady delivery time can be confirmed.
Casting ones need 35-40days.
Machining ones need 20-35days.
Tubes and rubbers need 20days
5. Low MOQ.
As usual, it’s 100pcs per type. But welcome your trial order with lower quantity to check quality first.
6. OEM & ODM
With professional technical team, new designs and customnized parts are welcomed.
7. Free samples are available for checking.
