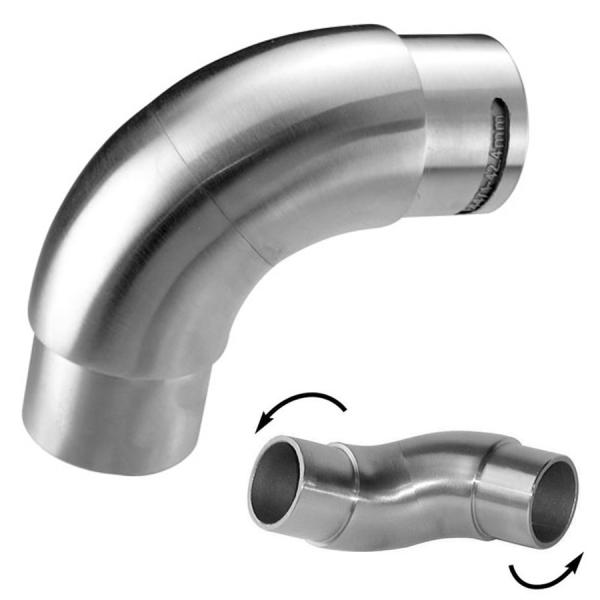

Stainless Steel Banister Handrail Parts 360 Degree Swivel Connector
Features.
This design is available for 360 degree adjustable accoding to different application, is widely uesed as handrail connector for stainless steel staircases and stainless steel cable railings, stainless steel tubular handrail systems and glass balustrade stainless steel handrails.
Available dimensions.
| Item NO. | Outer DIA | Tube thickness | Material | Surface |
| 311.337 | 33.7mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 311.381 | 38.1mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 311.424 | 42.4mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 311.483 | 48.3mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 311.508 | 50.8mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
Advantange of Compass
1. One-stop supplier
With professional casting production lines and machining lines, the whole series of stainless steel railing system can be supplied.
2. Standard materials is as followin
AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.0
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
3. Destination service.
DDU/DAP service could also be supplied according to needs, then the goods can be delivered to your address directly.
4. Steady and fast delivery time
With strickt controlling system according ISO9001, steady delivery time can be confirmed.
Casting ones need 35-40days.
Machining ones need 20-35days.
Tubes and rubbers need 20days
5. Low MOQ.
As usual, it’s 100pcs per type. But welcome your trial order with lower quantity to check quality first.
Products available.
With kinds of product lines, Compass could be your one-stop supplier.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.
